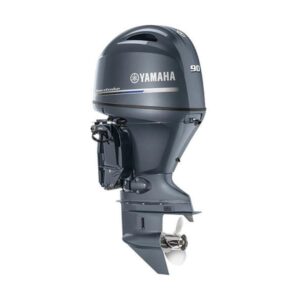

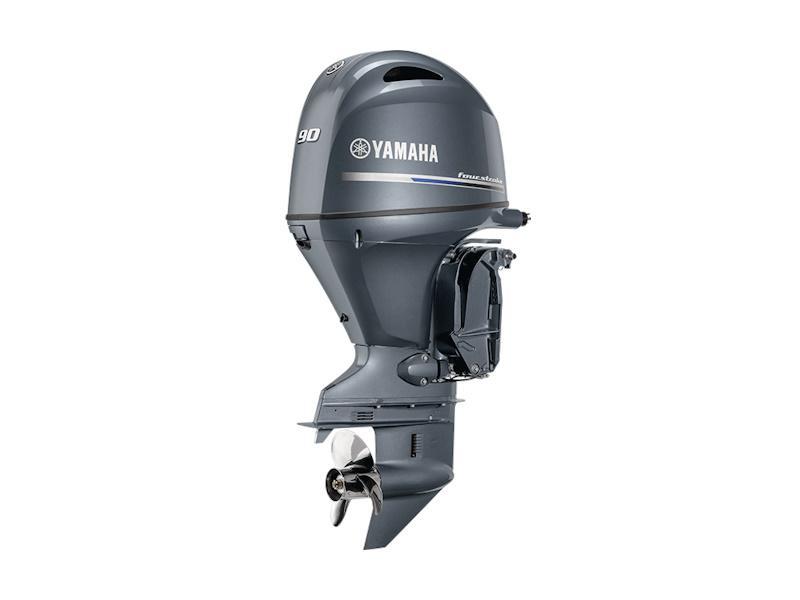

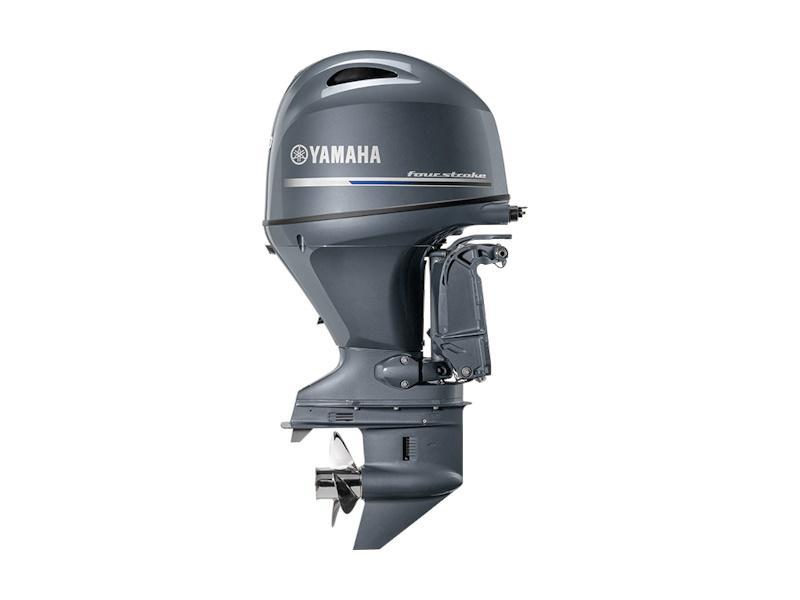

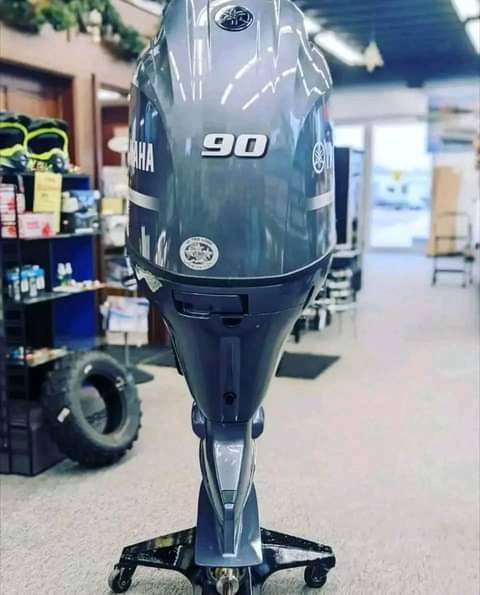

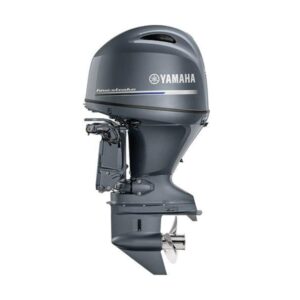

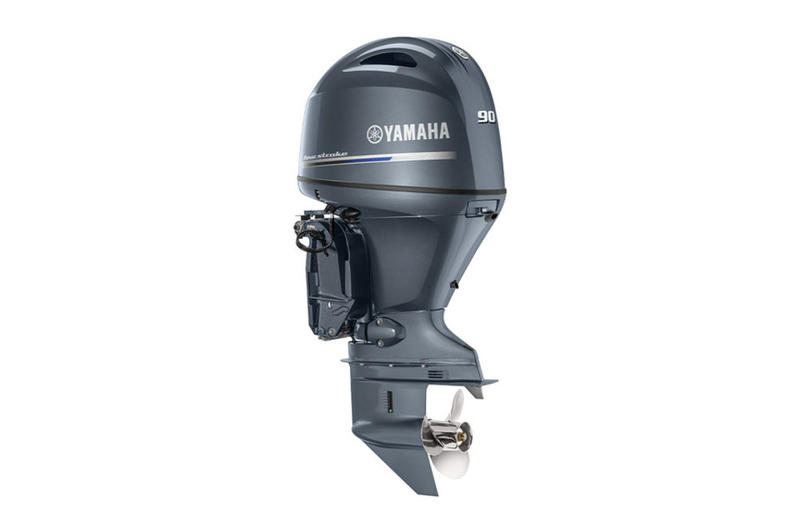

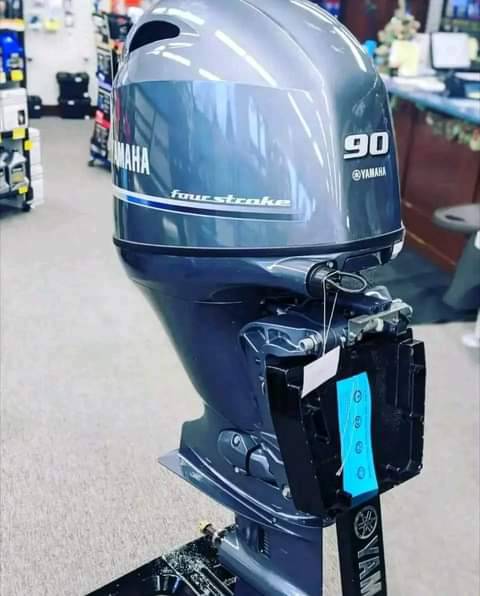

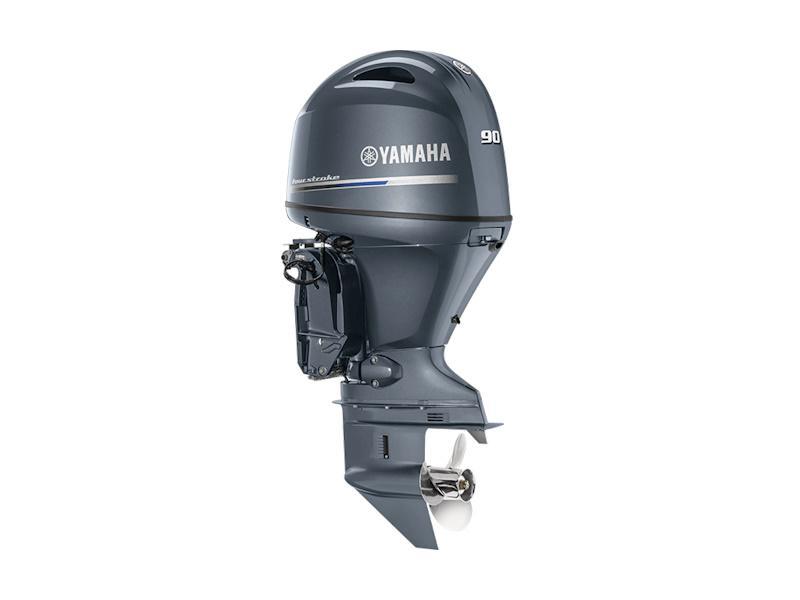

90 hp yamaha outboard

Price range: $2,100.00 through $4,400.00

Model Specific Features

  • Available for mechanical remote or tiller control
  • Only 353 pounds
  • Available in 20” or 25” shafts
  • Powerful 35-amp alternator
  • Optional Variable Trolling RPM via the Command Link® tachometer

Specifications

  • Engine Type: Inline 4
  • Displacement: 1.8L
  • Bore x Stroke: 81 x 88.9mm (3.19 x 3.5 in)
  • Prop Shaft Horsepower: 90hp @ 5500 rpm
  • Full Throttle RPM Range: 5000 ~ 6000
  • Alternator Output at W.O.T.: 35 Amp
  • Compression Ratio: 10.0:1
  • Fuel Induction System: EFI
  • Weight*: 160kg (353 lbs)
  • Recommended Fuel: Octane 87
  • Recommended Engine Oil: Yamalube® 4M (See owner’s manual)
  • Recommended Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external)
  • C.A.R.B. Rating: 3-Star
  • Exhaust: Through Propeller
  • Intake: 16
  • Ignition: TCI Microcomputer
  • Spark Plug: LFR6A-11
  • Alternator Output: 35 Amp
  • Starting System: Electric
  • Lubrication: Wet Sump
  • Engine Oil Capacity: 3.2/3.0L
  • Recommended Cooling: Thermostatic Control
  • Ethanol Blend Limit: 10% Maximum
  • Gear Ratio: 2.15:1
  • Gear Shift: Forward, Neutral, Reverse
  • Shaft Length: 20″
  • Degree of Tilt: 70
  • Degree of Trim: -4° through +66°
  • Dry Weight: 160kg (353 lbs)
  • Mounting Centers: 26″
  • Steering Angle (maximum): 35° from center, either direction
  • Warranty: Limited 3-year Pleasure, 3-year Government, 1-Year Commercial
